Phu An Mixed-Use Towers
Exterior visualization of the twin tower development.
Project Overview
Situated in the suburbs of Ho Chi Minh City, this project targets Vietnam’s emerging demographic of young, highly educated professionals by leveraging its strategic connection to the Hanoi Highway.
The development—comprising three residential towers and one office tower—utilizes a parametric model to maximize views and optimize spatial distribution. By implementing generative design during the massing phase, the project employs algorithmic logic to determine the ideal positioning, geometry, and proximity of each tower, ensuring a data-driven approach to both density and livability.
Technical Data
- Status: Concept Design
- Area: 120,000 sqm
- Tools: Rhino, Grasshopper, Revit
- Typology: Mixed-Use / Residential
Sight Blockage Analysis Iteration

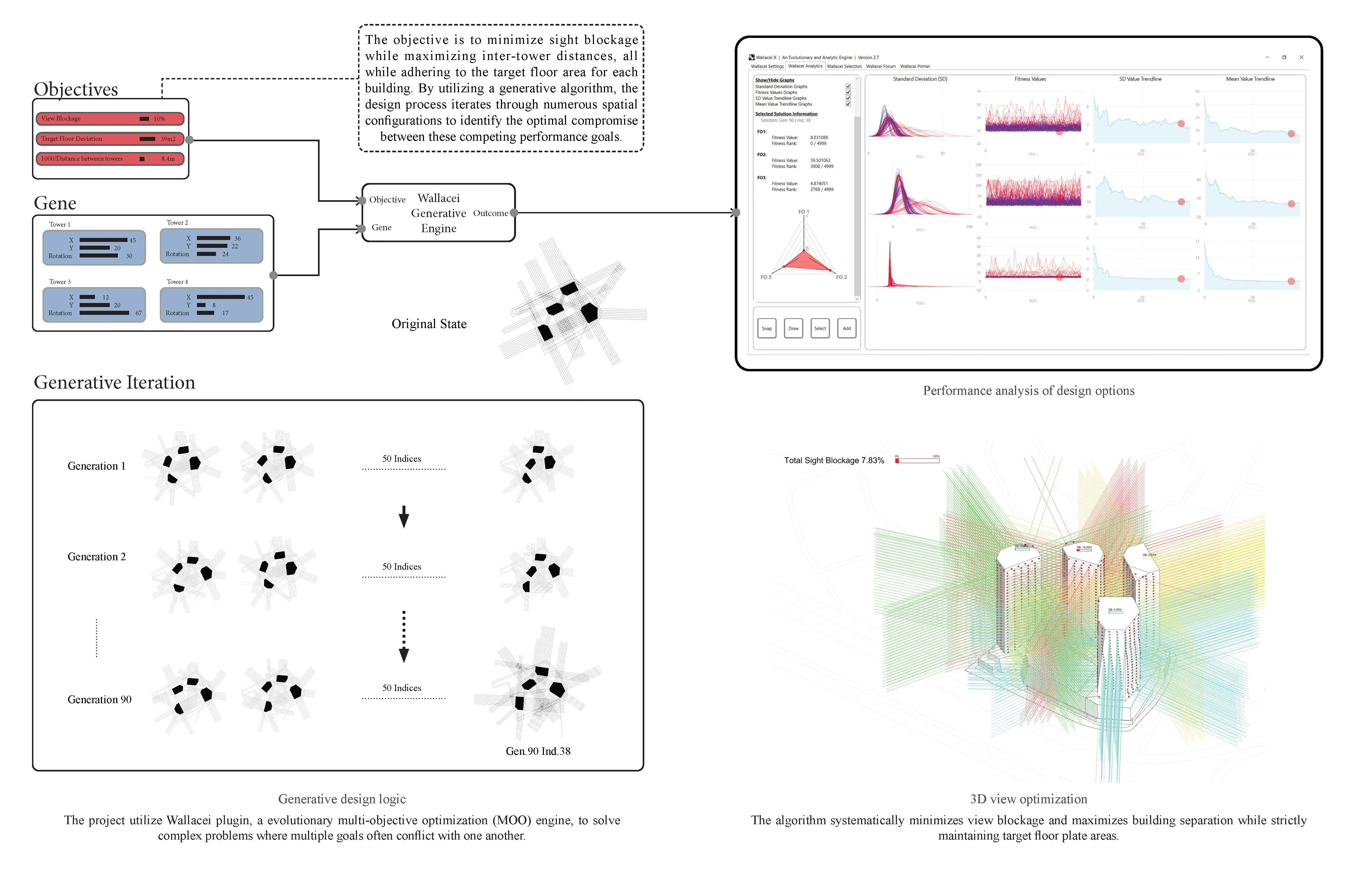

Generative Design Engine & Option Analysis
A Vibrant Social Hub: Synergizing Retail and Greenery

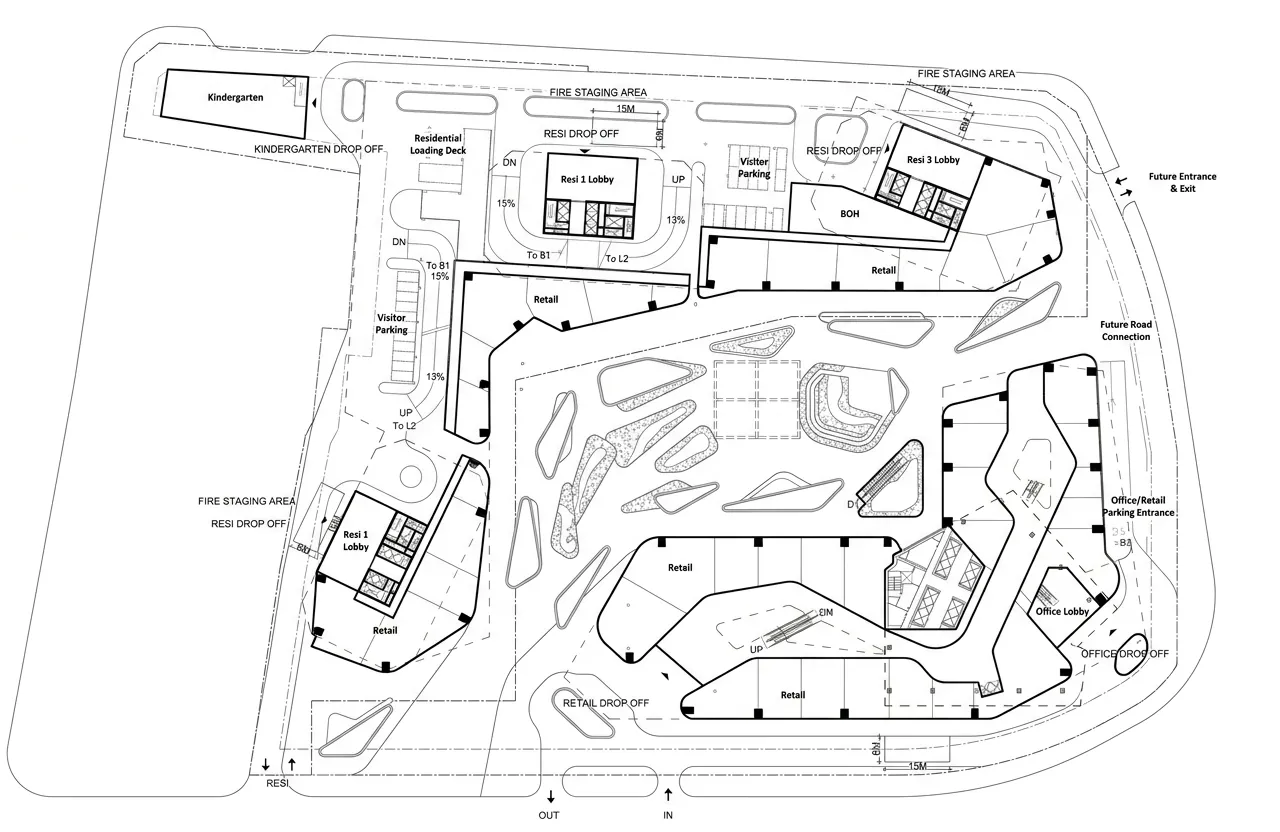

Ground Floor Plan
The Landmark Office Tower

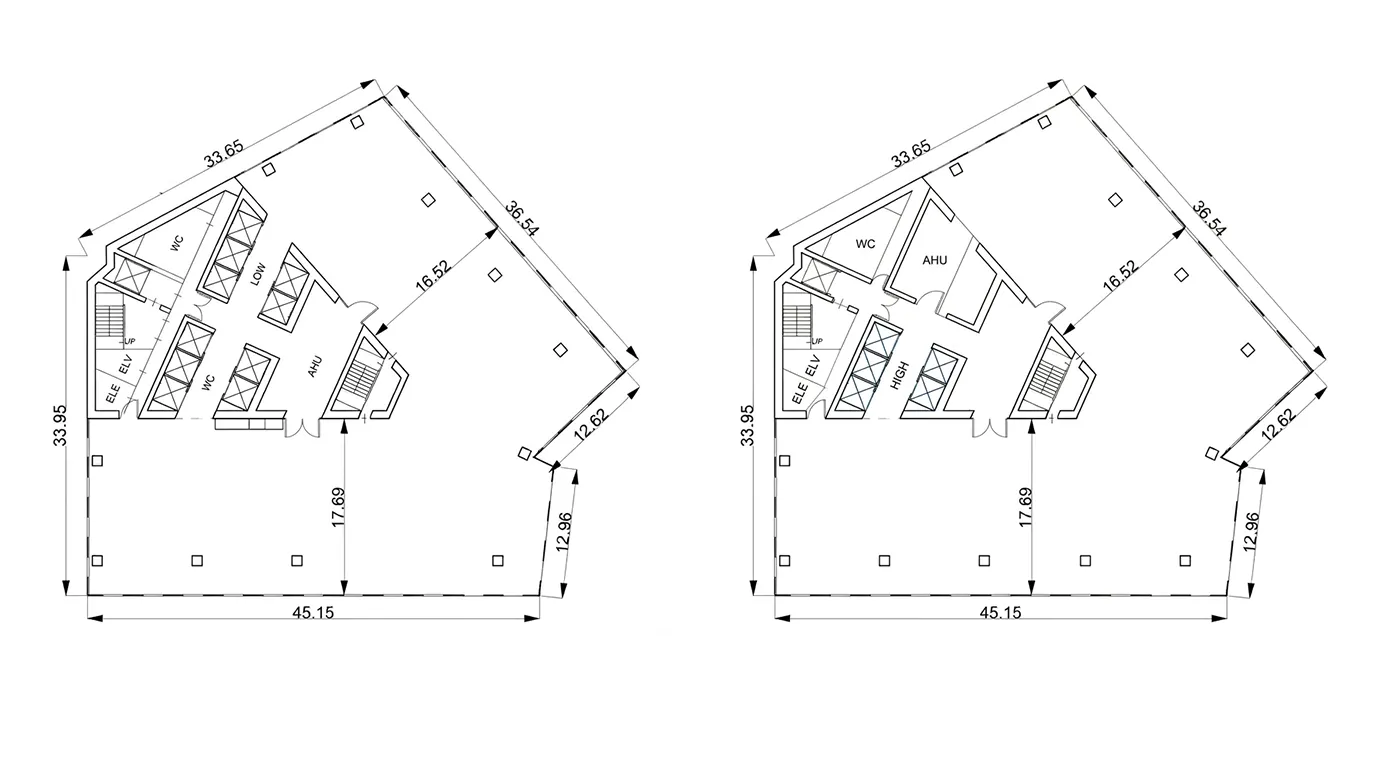

Office Floor Plan
Modern Minimalism & Optimized Typologies

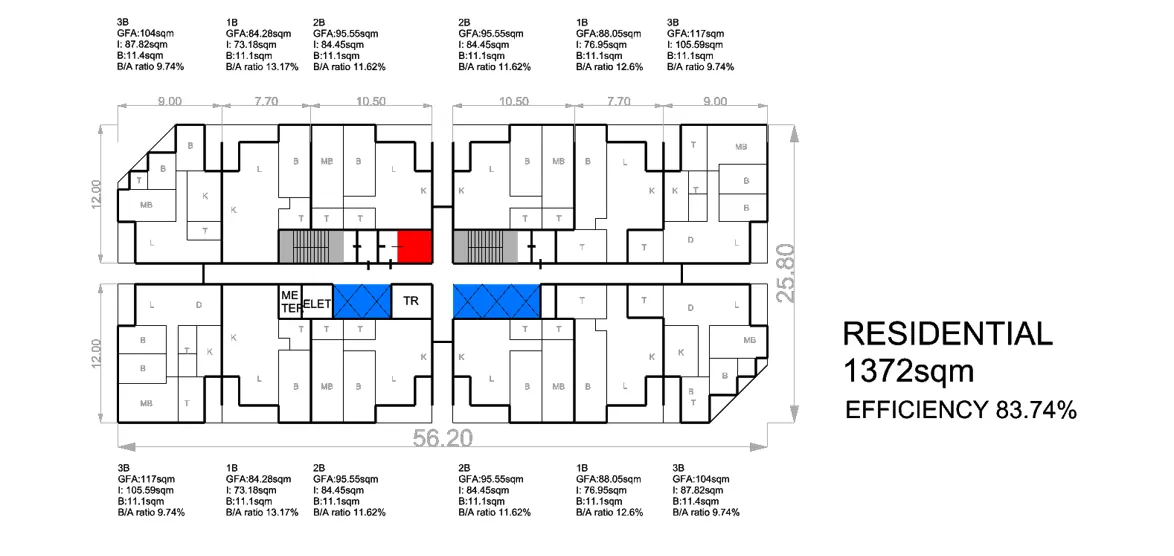

Residential Floor Plan
